Specializes in the field of #Clip Fixing Devices, # Clip Fixing Devices
Clip Fixing Devices
Key Benefits:

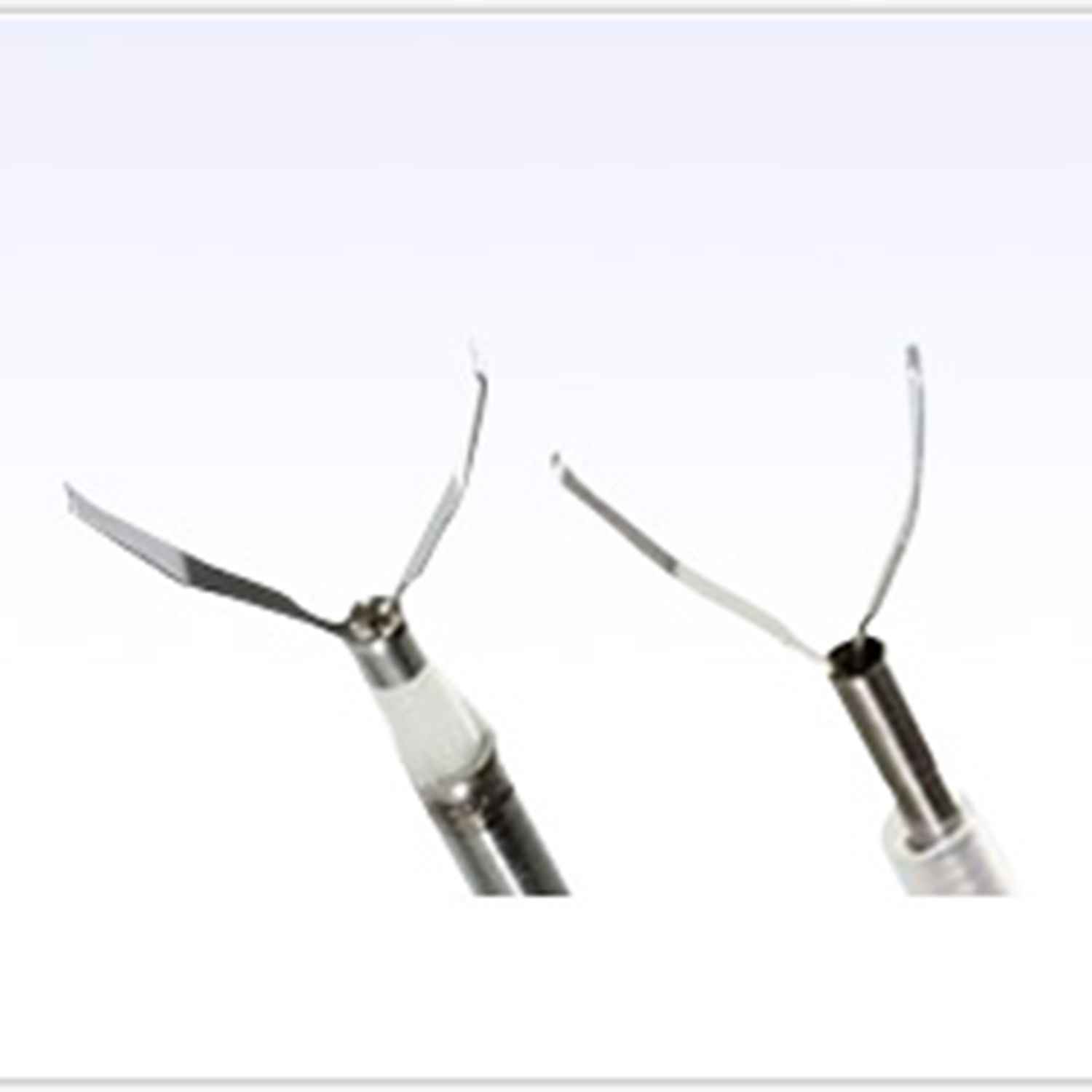

Rotatable clip fixing devices - QuickClip2
Ready to use single use rotatable clip fixing device for immediate effective hemostasis.
Rotatable clip fixing devices - QuickClip2 Long
QuickClip2 with long arms has been designed for those applications where wide extra opening is required.
Rotatable clip fixing devices - EZClip
Sterile, cartridge housed clips to be used in combination with the reusable clip applicator. Eight different types of clips are available. Rotatable, quick and simple loading - for fast and effective hemostasis.
Single-use rotatable clip fixing devices
- For mechanical hemostasis of upper and lower GI bleeding
- Additional uses include closure of mucosal defects, marking and anchoring
- Rotatable
- Sterile-packed, pre-assembled and ready to use
| Article name | Article number | Quantity | Min. working channel Ø | Working length | Arm length |
|---|---|---|---|---|---|
| HX-201LR-135, A-Set | N1809330 | 20 | 2.8 mm | 1650 mm | 7.5 mm |
| HX-201LR-135, B-Set | N1809430 | 5 | 2.8 mm | 1650 mm | 7.5 mm |
| HX-201UR-135, A-Set | N1809630 | 20 | 2.8 mm | 2300 mm | 7.5 mm |
| HX-201UR-135, B-Set | N1809730 | 5 | 2.8 mm | 2300 mm | 7.5 mm |
| HX-201YR-135, B-Set | N3049030 | 5 | 2.8 mm | 2700 mm | 7.5 mm |
Single-use rotatable clip fixing devices - long
- For mechanical hemostasis of upper and lower GI bleeding
- Additional uses include closure of mucosal defects, marking and anchoring
- Longer arm length for greater opening width
- Rotatable
- Sterile-packed, pre-assembled and ready to use
| Article name | Article number | Quantity | Min. working channel Ø | Working length | Arm length |
|---|---|---|---|---|---|
| HX-201LR-135L, A-Set | N2284030 | 20 | 2.8 mm | 1650 mm | 9 mm |
| HX-201LR-135L, B-Set | N2284130 | 5 | 2.8 mm | 1650 mm | 9 mm |
| HX-201UR-135L, A-Set | N2284330 | 20 | 2.8 mm | 2300 mm | 9 mm |
| HX-201UR-135L, B-Set | N2284430 | 5 | 2.8 mm | 2300 mm | 9 mm |
EZClip - Rotatable clip fixing device
Easy to use reusable rotatable clip fixing devices
- Fast and easy clip system
- For mechanical hemostasis of upper and lower GI bleeding
- Additional uses include closure of mucosal defects, marking and anchoring
- Rotatable
| Article name | Quantity | Min. working channel Ø | Working length |
|---|---|---|---|
| HX-110LR | 1 | 2.8 mm | 1650 mm |
| HX-110QR | 1 | 2.8 mm | 1950 mm |
| HX-110UR | 1 | 2.8 mm | 2300 mm |
Clips for easy to use reusable rotatable clip fixing devices
- Sterile, cartridge-housed clips
- Variety of clips for different applications
- Coloured cartridges to distinguish between clip designs
| Article name | Quantity | Clip arm length | Features | Colour of cartridge | Jaw angle |
|---|---|---|---|---|---|
| HX-610-135XS | 24 | Super short approx. 4 mm | For hard tissue and bleeding ulcers | Grey | 135° |
| HX-610-135S | 40 | Short. approx. 6 mm | For stronger clipping/smaller area, hemostasis of stiffer lesions | Green | 135° |
| HX-610-135 | 40 | Standard. approx. 7.5 mm | For pathological mucosa, deep ulcerous lesions, cancerous tissue | Pink | 135° |
| HX-610-135L | 40 | Long. approx. 9 mm | Wide clip opening, for post-EMR and post-polypectomy clipping in polyps with big stalk, for tangential approach | Purple | 135° |
| HX-610-090S | 40 | Short. approx. 6 mm | For marking | White | 90° |
| HX-610-090 | 40 | Standard. approx. 7.5 mm | For healthy, elastic mucosa, Mallory-Weiss syndrome, open vessels, small perforations and marking | Yellow | 90° |
| HX-610-090L | 40 | Long. approx. 9 mm | For healthy, elastic mucosa, large-scale lesions, large adenomatous pedicules before and after polypectomy | Blue | 90° |
| HX-610-090SC | 24 | Short. approx. 6 mm | Special clips for marking: distal part coloured eight white-, red- and yellow-coloured clips in each package | White | 90° |
